Amplify your skills. Master the standards.
GPS-PRACTICE.COM is your place to go for the practical application of the ISO GPS standard system (ISO 8015).
Here you will find content that you support to
Focus on specific drawing examples from a wide range of industries and application areas. From the simple milling and turning part to complex assemblies as well as micro-injection molding parts and large welding examples are chosen in a way to provide you with practical insights into the application of the ISO GPS system.
The spectrum ranges from simple individual parts with specific challenges to assembly considerations where specific interfaces are analyzed. It is important to mention that, unless expressly stated, otherwise no tolerance analysis and tolerance calculations are intended. The focus is usually on working out an appropriate tolerance strategy.
Often, several solutions exist for identical components approaches (partially including small constructive and functional adaptations). On gps-practice.com you will get several possible solutions representing these functional requirements of the part.

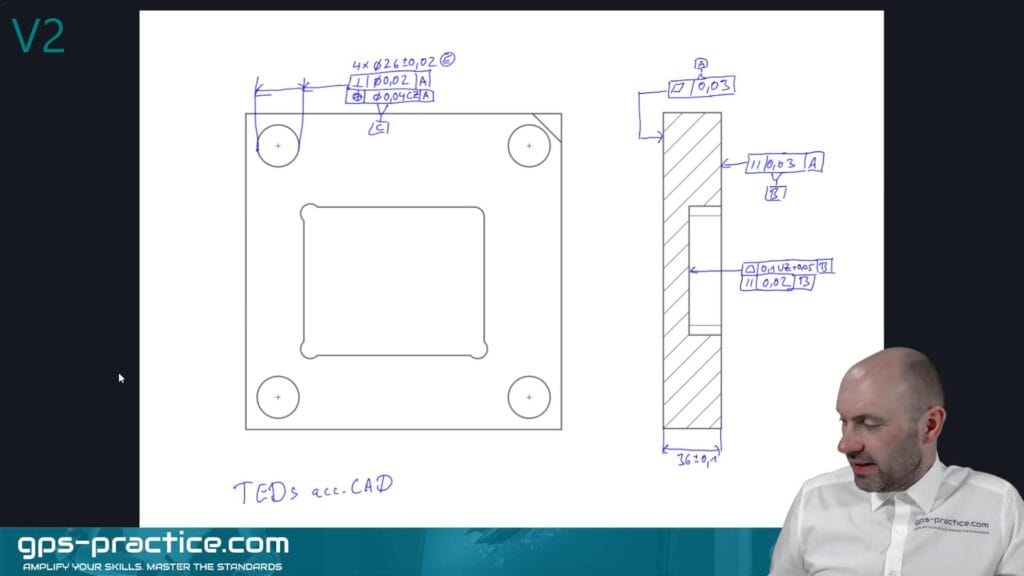

For each example, you will not only get a document showing the final specifications but also access to a detailed explanation video. In these videos the derivation of the specifications is explained step by step. Learn how requirements are correctly defined, and which ISO GPS standards are helpful, and modifiers are used. This way you can combine theory with practice even better.
For each practical example we will inform you in advance about the relevant standards that played a role in creating the example. This helps you to get a better relation to the specific standards.
Many examples highlight common “specialties”, i.e. functional or geometric challenges, such as, for example, a typical axial bearing, snapping feature on an injection molded part, floating drilling patterns or the standard compliant way to specify a fillet or a chamfer (transition specification according to ISO 21204). These practical examples offer you an insight into the implementation of special requirements and show how complex problems can be solved using the ISO GPS tools.
The content will be continuously extended and updated to meet the latest developments in the standards and the requirements of the industry. So, you are always up-to-date.
With GPS-PRACTICE.COM you have access to a unique combination of knowledge, practical examples, explanation videos and inspirations to help you to apply the ISO GPS language safely and confidently.
